Are you looking to learn more about UL2464 cable and its role in wire and cable technology? Look no further! In this article, we will lead you to the answer you are looking for.

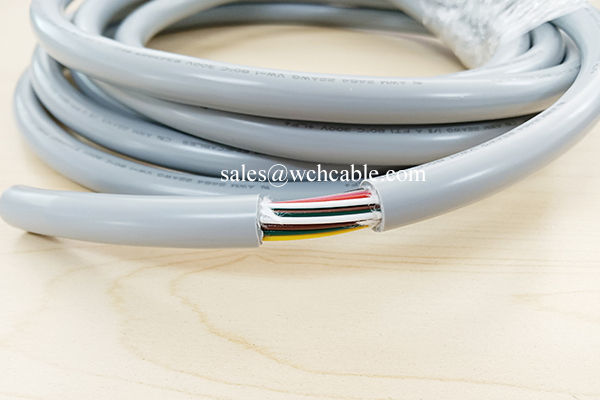

Definition of UL2464 Cable
UL2464 Cable is designed for interconnection in electronic devices, rated 300V. It features a durable PVC jacket and offers optional shielding for enhanced protection. The cable meets UL VW-1 vertical flame resistant test grade, ensuring reliable performance and safety in various applications. UL2464 cable combines flexibility with high quality construction, suitable for use in demanding environments.
Technical Parameters
- Rated Voltage: 300V
- Rated Temperature: 80ºC
- Insulation Material: PVC
- Jacket Material: PVC
- Conductor Material: Tinned or Bare, Stranded or Solid Copper
- Optional: AL-Mylar, Copper Braided Screened Shield
- Manufacturing Standard: UL758, UL1581, C22.2 No.210
- Passes UL VW-1 & CSA FT1 vertical flame test.
- Uniform insulation thickness of wires to ensure easy stripping and cutting.
What are the differences between UL2464 Cable and UL20549 Cable?
- The voltages rated are the same, both at 300V.
- The sheath materials applied are different. UL2464 cable sheath is Polyvinyl Chloride PVC, while UL20549 cable is Polyurethane TPU.
- UL2464 cable is usually lower cost than UL20549 cable.
| Product Name | Rated Voltage | Sheath Material | Cost Effect |
|---|---|---|---|
| UL2464 | 300V | Polyvinyl Chloride PVC | ✪✪✪✪✪ |
| UL20549 | 300V | Polyurethane TPU | ✪✪✪ |
Application of UL2464 Cable
UL2464 Cable is suitable for interconnection of electrical and electronic equipment and appliances. It can be applied to the lighting industry, automotive industry, household appliances, electronic equipment, computer data wiring, computers, sensors, mainframes, speakers, lighting, etc.
Technical Data Sheet Download
| Style Number | Specification Description | Datasheet Download |
|---|---|---|
| UL2464 | 16AWG x 5C | WCH2464165C |
| UL2464 | 18AWG x 6C | WCH2464186C |
| UL2464 | 20AWG x 8C | WCH2464208C |
| UL2464 | 22AWG x 5C | WCH2464225C |
| UL2464 | 22AWG x 6C | WCH2464226C |
| UL2464 | 24AWG x 3C | WCH2464243C |
| UL2464 | 24AWG x 4C | WCH2464244C |
| UL2464 | 26AWG x 3C | WCH2464263C |
| UL2464 | 26AWG x 4C | WCH2464264C |
| UL2464 | 26AWG x 5C | WCH2464265C |
| UL2464 | 28AWG x 3C | WCH2464283C |
| UL2464 | 28AWG x 4C | WCH2464284C |
| UL2464 | 28AWG x 5C | WCH2464285C |
| UL2464 | 28AWG x 10C | WCH24642810C |
Frequently Asked Questions
Q: I need a halogen-free version but the same structure and properties as UL2464 cable. Is this possible?
A: Yes, halogen-free version of UL2464 cable becomes more and more popular these days. The halogen-free cable has the same voltage & temperature rated but remains the same structure and properties. All the raw materials involved will be applied with high quality halogen-free standard.
Q: What is the price of UL2464 Cable?
A: UL2464 cable is a type of jacketed cable, which contains two or more insulated wires and different conductor size. UL2464 cable price is subject to the different structure and demand situation. You are welcome to contact our service team to request more details and final quotation.
Where To Buy UL2464 Cable
WCH Cable is an experienced cable factory, who have been manufacturing various specifications of UL2464 cable and are constantly updated with modern technology to work out the best quality UL2464 cable for all customers. Should you demand to buy high quality UL2464 cable, please drop us directly an email (sales@wchcable.com) to request a quotation.
